Seiko Solvent Printer

Name:
Infiniti/Challenger Seiko Solvent Printer FY3278N
Model:FY3278N
Function:
(1).Double 4 color printing,the standard output achieves 157㎡/hr;

(2).AC servo motor is used to run the carriage quicker and more stable;

(3).Individual color purging minmizes the waste of the ink;

(4).3 way intelligent heater helps bring more vivid output;

(5).The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat;

(6).Adopt USB2.0 output system,faster and more flexible.

Description
Configuration
Paking List
Download
Video

1.Introduction:

Infiniti/Challenger newly released printer FY-3278N

Equipped with industrial piezo printhead which comes with 510 nozzles,

printing width of 71.8mm,and 360dpi printing resolution.

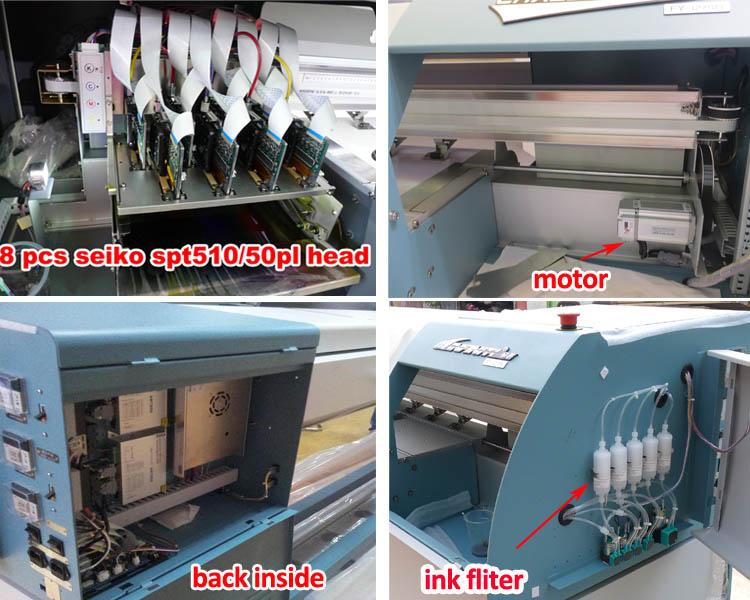

(1).Seiko Instrument Group SPT print head, 510 nozzles per print head;
(2).The voltage of the print head is able to adjust automatically depending on the temperature. This will solve the problem on nozzle clogging under huge temperature change;
(3).The function of skipping white space is added to increase productivity;
(4).The adjustment of bi-direction, step and carriage moving speed can be modified during printing;
(5).Edge feather function can blur the pass line and feather pass edge;
(6).Well designed alloy-aluminum girder is installed to decrease the noise during printing. Achieve the perfect quiet working environment;
(7).Photo print / Maintop / Wasatch software provide user-friendly interface and handy function with two types of printing;
(8).100% single color black is used on printing black text to avoid mixture of color;
(9).Control system has the function of resuming printing after the power is cut off. This helps you to save unnecessary loss of cost;

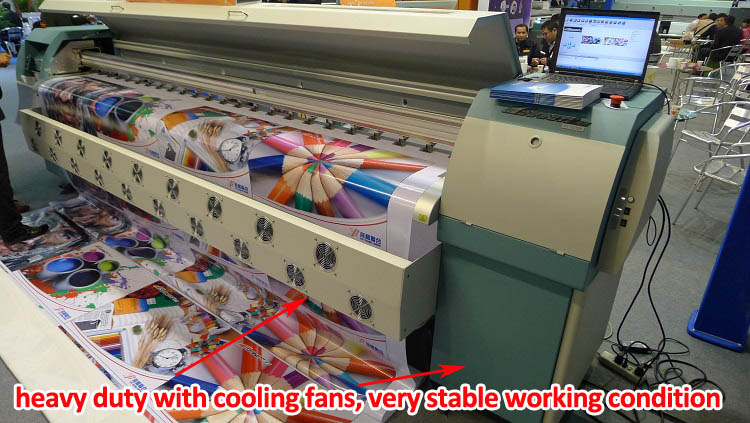

(10).The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained.

2.Parameters:

FY3278N
Item		Specification
Model		FY-3278N
Printhead		SPT-510/50PL
Number of Printhead		8Heads
Maximum Print Width		3.300mm(129.92inch)
Media Width		3.200mm(125.98inch)
Ink Type		Solvent Ink
Output	2pass	157m2/hr
	3pass	109m2/hr
	3pass	91m2/hr
	4pass	70m2/hr
Auto Media Feeding System		Equipped(Max. Media Weight 80kg)
Auto Cleaning System		Positive. Cleaning Anti-clogged Flash Function
Pre-heat & Dry System		Equiped(Drying System Optional)
Color		4 color(C、M、Y、K）
Ink Supply System		Low Ink Detector, Auto or Manual Ink Supply System
Print Interface		USB2.0
RIP Software		Maintop/Ultraprint
Machine Dimension		4,6009701,290
Package Dimension		4,93011401,620
