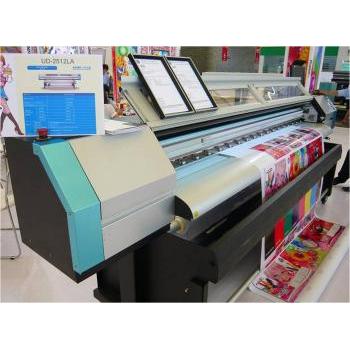

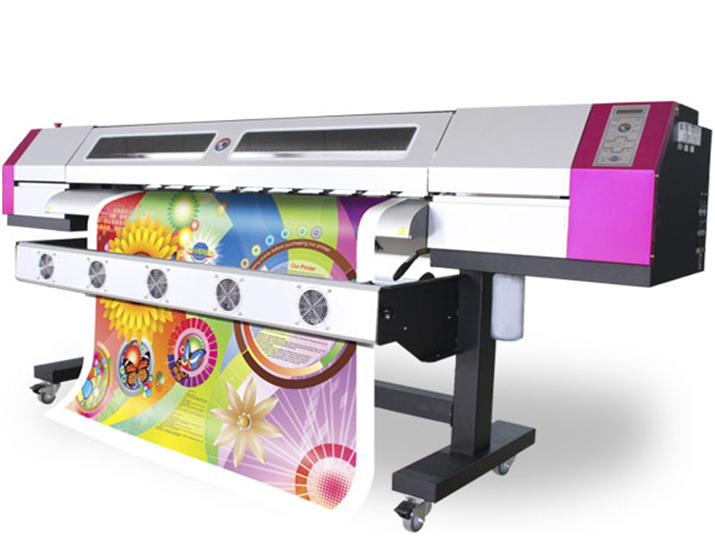

ECO-Solvent Printer

1.Simple Introduction:

(1).ECO Solvent ink,four colors(C,M,Y,K);

(2).Suitable for both indoor and outdoor printing;

(3).Stable operation heating system improve the printing quality.

2.Environment Requirement:

Keep the room temperature between 20—30°C,

and the humidity between 40—60%.

Air conditioner and humidifier may require.

Keep a distance from strong radiation field.

The floor must be level.

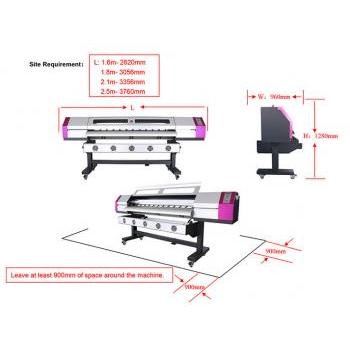

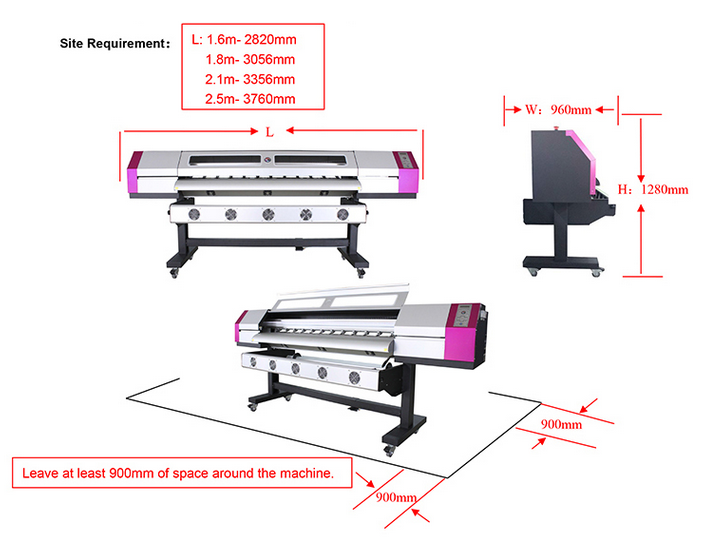

3.Site Requred:

(1).1.6m Length machine require 2820mm space at site;

(2).1.8m Length machine require 3056mm space at site;

(3).2.1m Length machine require 3356mm space at site;

(4).2.5m Length machine require 3760mm space at site.

4.Electrical requirement:

The printer only supports AC 220V.

A transformer is needed if the area is using AC110V.

The printer must be well grounded:

The grounded voltage should be less than 0.3V,

The grounded resistance should be less than 3Ω.

UPS and voltage stabilizer is highly recommended.

Note:

(1).1.6m Heater:1320W(6A),Printer:330W(1.5A)

(2).1.8m Heater:1320W(6A),Printer:330W(1.5A)

(3).2.1m Heater:1540W(7A),Printer:330W(1.5A)

(4).2.5m Heater:1870W(8.5A),Printer:330W(1.5A)

(5).3.2m Heater:1980W(9A),Printer:550W(2.5A)

Note:

The total power consumption of the machine cannot be higher than

the assigned power on the socket.

5.Parameter:

Model	UD-1812LC
Print Head	Epson DX5
Number of Print Head	2 Heads
Max Printing Width	1800mm
Printing Speed (m2/hr)	Draft	4 pass 31
	Standard	6 pass 21
	Quality	8 pass 13
	High Quality	8 pass 13
	Backlit	12 pass 8
Ink	Type	Waterbased / Eco Solvent Ink
	Color	C M Y K
	Capacity	1 liter

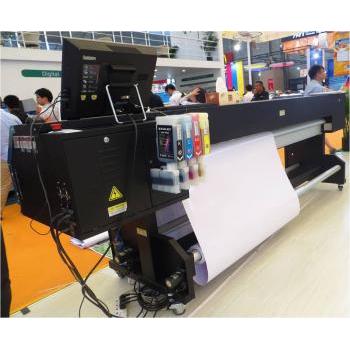

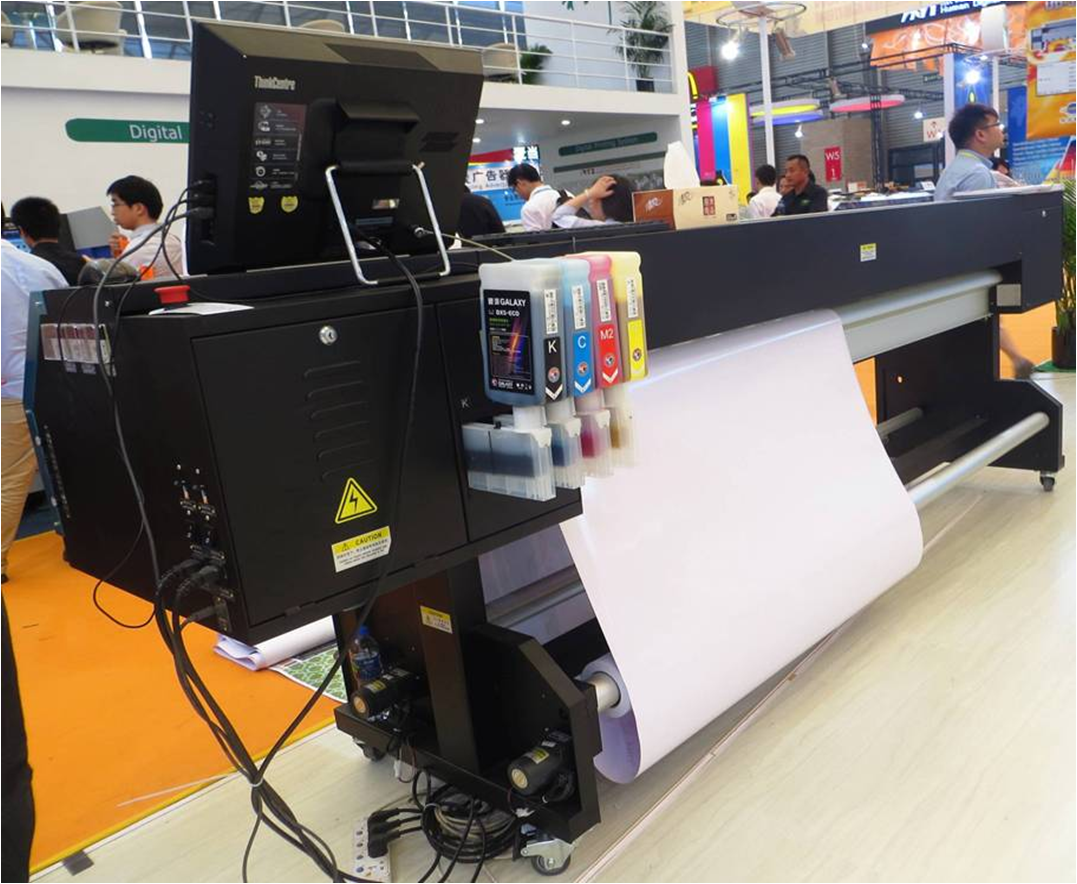

	Ink supply system	Auto ink supply system
Media	Width	Max 1880mm
	Type	Vinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding System	Equipped (Max media weigh 25kgs)
Auto Cleaning System	Anti-clogged flash function and capping system
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2.0
Print Head Height	2-10mm from media

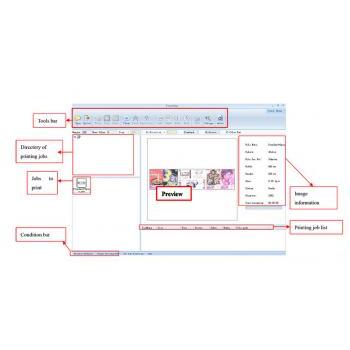

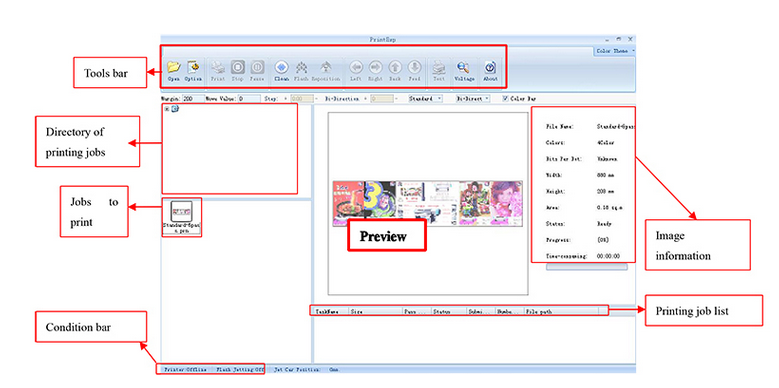

Rip Software	Ultraprint, Maintop, Photoprint, Shiraz, Wasatch
Input Power	AC220v, 50HZ/60HZ
Machine Dimension	L3080 * W990 * H1260mm / 204kgs
Package Dimension	L3140 * W1050 * H685mm / 381kgs
Requirement	Temperature: 20-28 degree, Humidity: 40% - 60%
