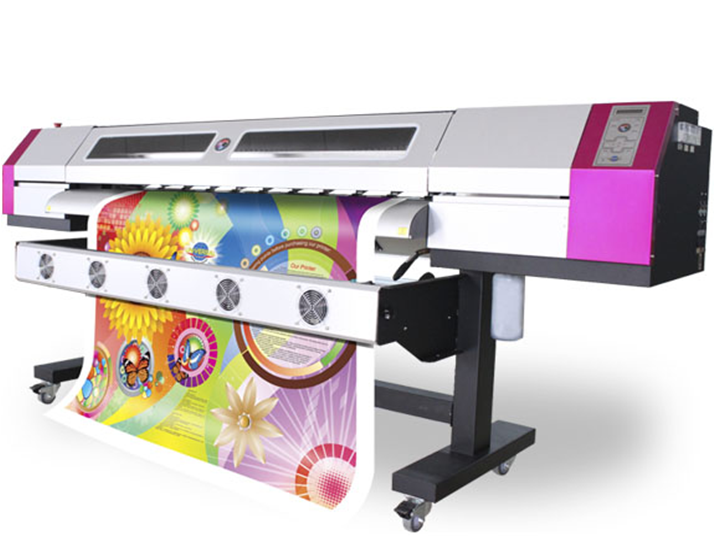

ECO-Solvent Printer

1.Simple Introduction:

(1).Equipped with Epson DX5 print head;

(2).Full aluminum platform;

(3).X,Y axis AC servo motors;

(4).Bearing rail is stable and long durability.

2.Environment Requirement:

Keep the room temperature between 20—30°C,

and the humidity between 40—60%.

Air conditioner and humidifier may require.

Keep a distance from strong radiation field.

The floor must be level.

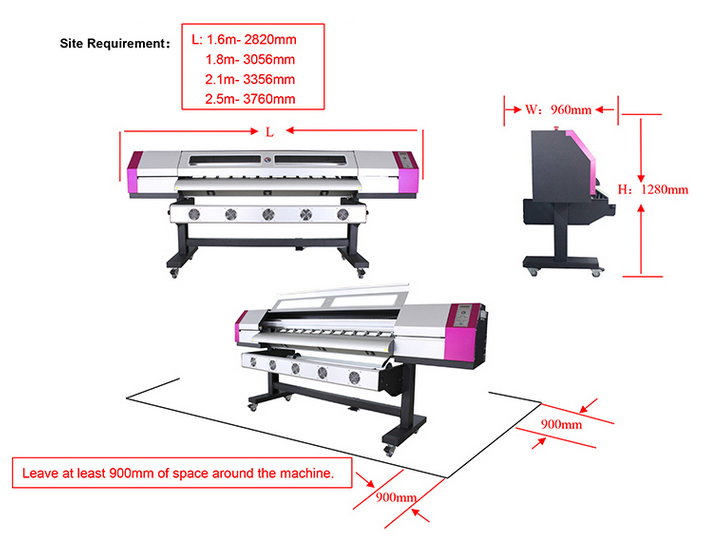

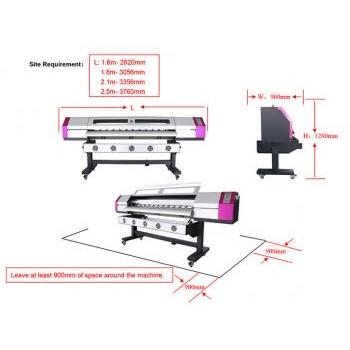

3.Site Requred:

(1).1.6m Length machine require 2820mm space at site;

(2).1.8m Length machine require 3056mm space at site;

(3).2.1m Length machine require 3356mm space at site;

(4).2.5m Length machine require 3760mm space at site.

4.Electrical requirement:

The printer only supports AC 220V.

A transformer is needed if the area is using AC110V.

The printer must be well grounded:

The grounded voltage should be less than 0.3V,

The grounded resistance should be less than 3Ω.

UPS and voltage stabilizer is highly recommended.

Note:

(1).1.6m Heater:1320W(6A),Printer:330W(1.5A)

(2).1.8m Heater:1320W(6A),Printer:330W(1.5A)

(3).2.1m Heater:1540W(7A),Printer:330W(1.5A)

(4).2.5m Heater:1870W(8.5A),Printer:330W(1.5A)

(5).3.2m Heater:1980W(9A),Printer:550W(2.5A)

Note:

The total power consumption of the machine cannot be higher than

the assigned power on the socket.

5.Parameter:

Model	UD-161LC
Print Head	Epson DX5
Number of Print Head	1 Head
Max Printing Width	1600mm
Printing Speed (m2/hr)	Draft	4 pass 15
	Standard	6 pass 10
	Quality	8 pass 8
	High Quality	8 pass 8
	Backlit	12 pass 4
Ink	Type	Waterbased Ink
	Color	C M Y K
	Capacity	1 liter

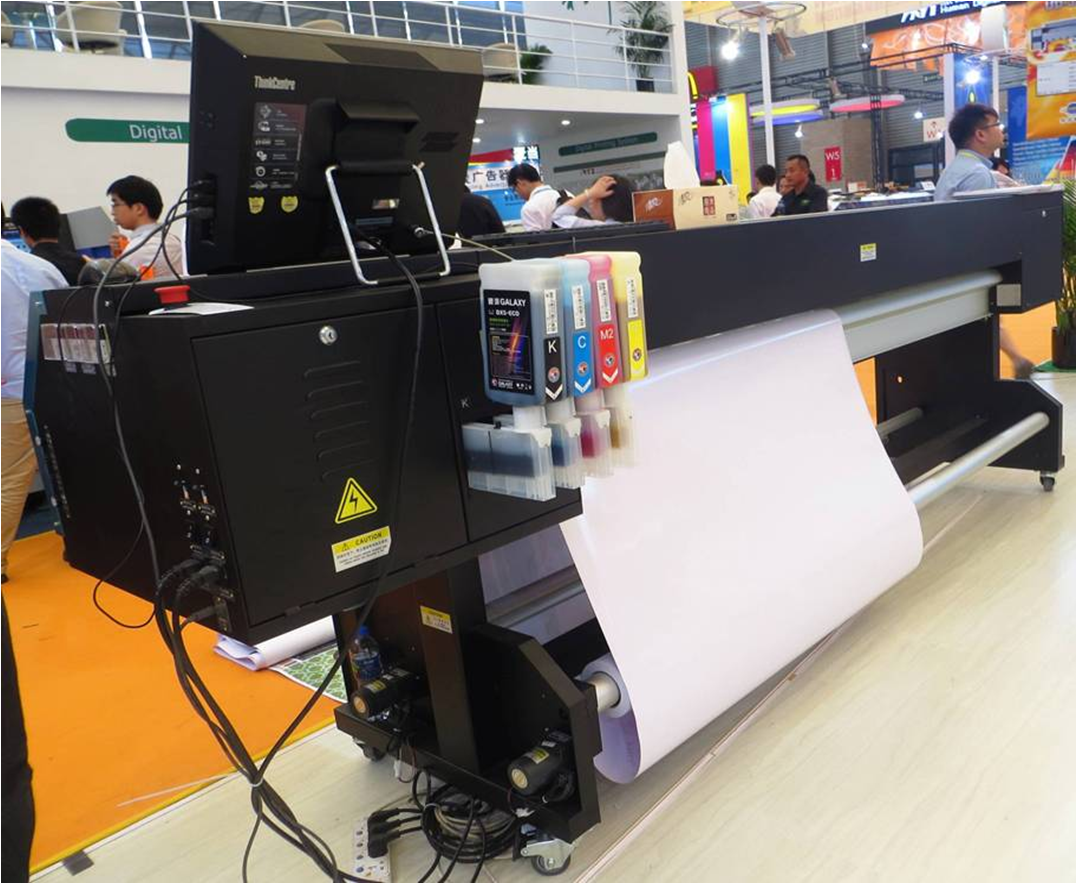

	Ink supply system	Auto ink supply system
Media	Width	Max 1680mm
	Type	Vinyl, Polyester, Flex, Back-lit Film, PS Board, KT Board, PVC Board, etc.
Auto Media Feeding System	Equipped (Max media weigh 25kgs)
Auto Cleaning System	Anti-clogged flash function and capping system
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2.0
Print Head Height	2-6mm from media

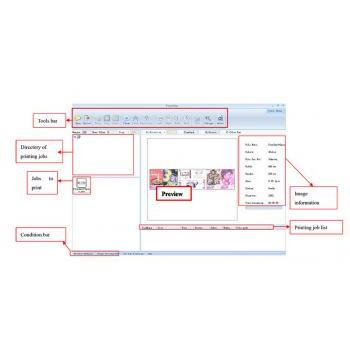

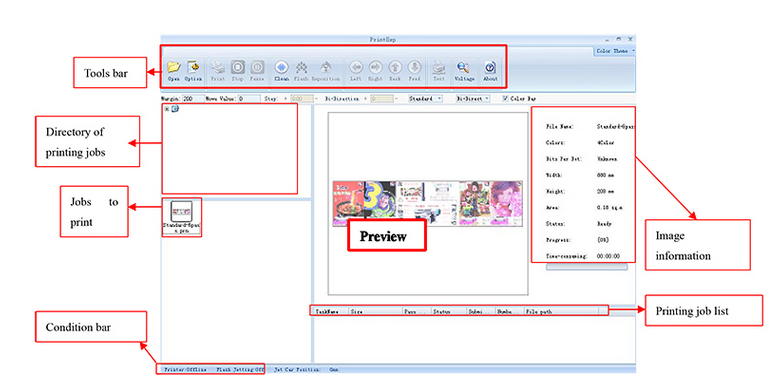

Rip Software	Ultraprint, Maintop, Photoprint, Shiraz, Wasatch
Input Power	AC220v, 50HZ/60HZ
Machine Dimension	L2820 * W990 * H1260mm / 200kgs
Package Dimension	L2860 * W1050 * H685mm / 377kgs
Requirement	Temperature: 20-28 degree, Humidity: 40% - 60%
