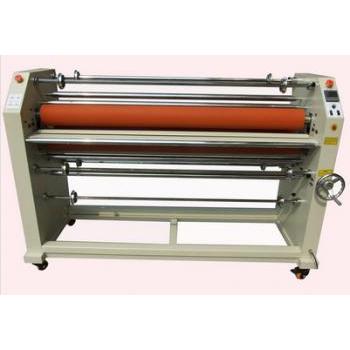

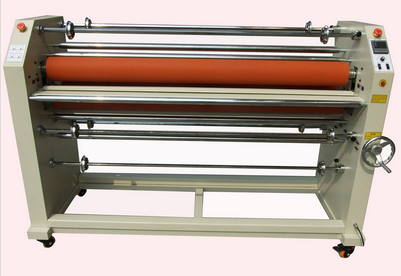

Hot Roll Laminator

  • Name:

    hot roll laminator LSP1600

  • Model:LSP1600
  • Function:
  • (1).single/double-side cold laminating, single/double-side hot laminating,
    (2).2 roller heating,foot control switch,
    (3).LCD display,  Intelligent control,
    (4).Capable of adjusting the temperature and the speed.

  • Description
  • Image
  • Configuration
  • Paking List
  • Download
  • Video
  • 1.Feature:

    (1).single/double-side cold laminating, single/double-side hot laminating,
    (2).2 roller heating,foot control switch,
    (3).LCD display, Intelligent control,
    (4).Capable of adjusting the temperature and the speed.

    2.Parameter:
    (1).Max. Laminating Width:1600mm
    (2).Max. Laminating Thickness:35mm
    (3).Hot Laminating Temp.:100-140°C
    (4).Cold Laminating Temp.:0-50°C
    (5).Laminating Speed:300-500mm/min
    (6).Heating method:Hot Roll
    (7).Laminating Mode:Automatic
    (8).Power Supply:AC220V(110)±10%  50HZ(60HZ)3000W
    (9).Machine Dimension:2,100*720*1,250
    (10).Weight:240 KG
