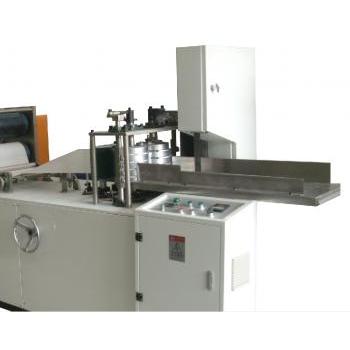

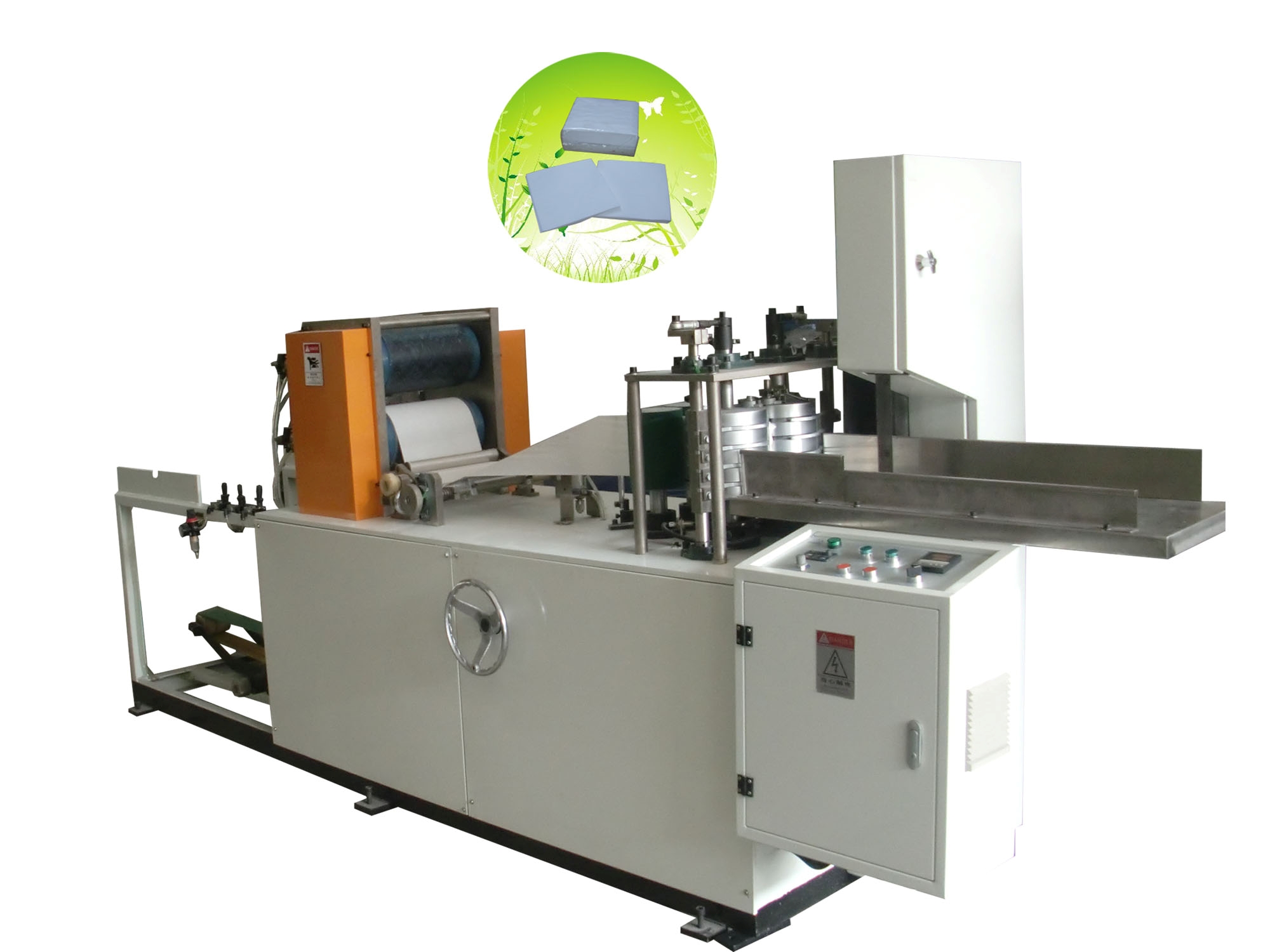

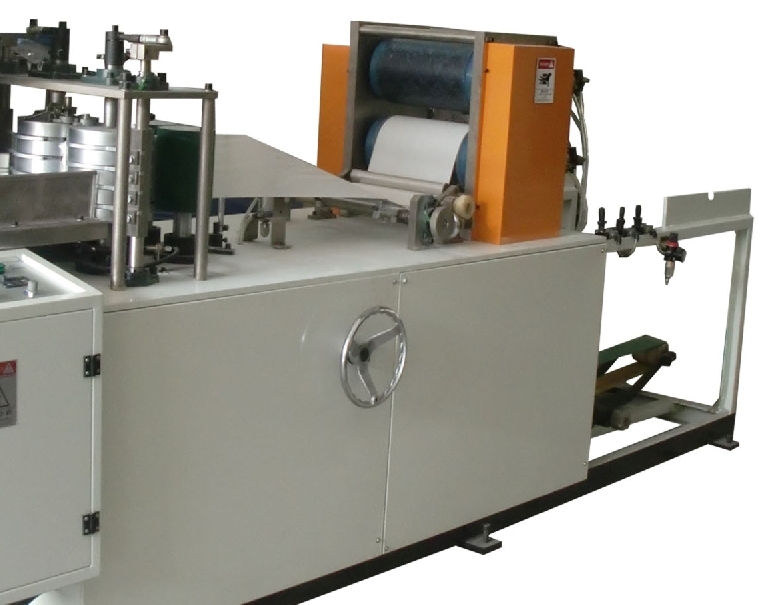

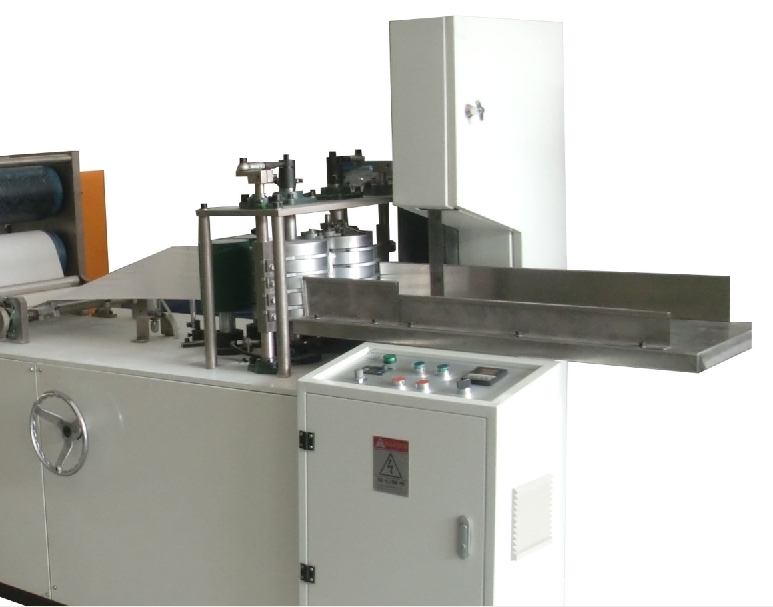

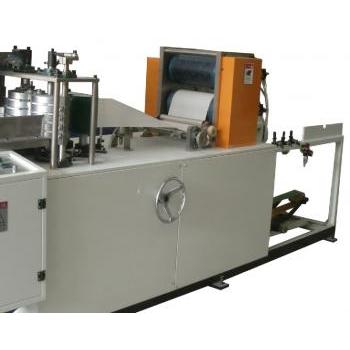

This machine is to print, emboss and automatically fold the rolled paper which is cut well into square or rectangular Napkin Paper. Can add 1-4 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running, is preferred equipment for processing good quality napkin paper.
Equipment Function and Characters:
1.A variety of folded pattern can be selected, can be customized.
2.Color printing part adopts flexography printing, pattern can replace flexibly according to requirement, adopt special color printing, net lines ink vibrator.
3.Stepless speed adjustment for unwinding roll, whole machine run synchronously, production automatic counting, can set automatic counting delamination output, convenient for packing.
4.Bottom embossing roller adopt Felt Roller, Wool Roller, Rubber Roller(you can select 1 kind among them). Embossing can be selected to equip with heating system, pattern is bright.
5.This machine with two embossing units on the machine. It is for option. The customer can choose one embossing pattern for production, and change another pattern if it is needed without replacing spare parts.
Main technical parameter:
1.Production speed: 400-500 pieces/minute;
2.Unfolded size of finished products:300 × 300 mm;
3.Folding size of napkins: 150 × 150mm;
4.Jumbo roll paper width: ≤300 mm;
5.Jumbo roll paper diameter: ≤1200 mm;
6.Equipment power:4.7KW (380V 50HZ);
7.Overall size of machine:3700×850 × 1600 mm;
8.Equipment Weight:about 1.7Ton.
