1.Folding size:140*140± 1mm;
2.Unfolded size:280*280mm;
3.Specification of raw paper: ≤560*1200mm；
4.Folding way: double triangle 1/4 folding.
Working principle:
Loading material(load material pneumatically)---Flat belt feeding ---Embossing---Cutting---Lengthways folding---Counting---Crosswise folding---Cutting automatically---Production

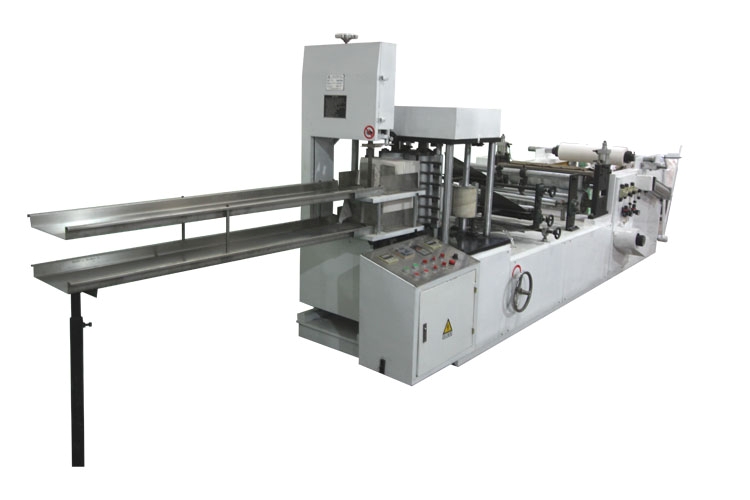

280 model double layer high effecient Napkin Paper Folding machine:
1.Folding size:140*140± 1mm;
2.Unfolded size:280*280mm;
3.Specification of raw paper: ≤560*1200mm；
4.Folding way: double triangle 1/4 folding;
5.Embossing unit: The buyers should prepare it by themselves,we provide drawing;
6.Paper breakdown device(it is set between embossing unit and forming unit);
7.One group knives: it automatically cut raw paper;
8.The guide pipe is made from aluminium alloy,which can make sure the concentricity;
9.Feeding part: it adopts belt to control the feeding process,AP ration gear can adjust stepless;
10.Loading material pneumatically(the buyer should prepare the air compressor by himself);
11.Sharpen the knives pneumatically;
12.Automatic counting system;
13.Main motor is frequency conversion motor: 3 kw,380V,50Hz;
14.Machine head transmission: standard struction commutator;
15.Output holder is double layer and made from stainless steel;
16.Machine capacity: speed is 1600 pcs/min.
