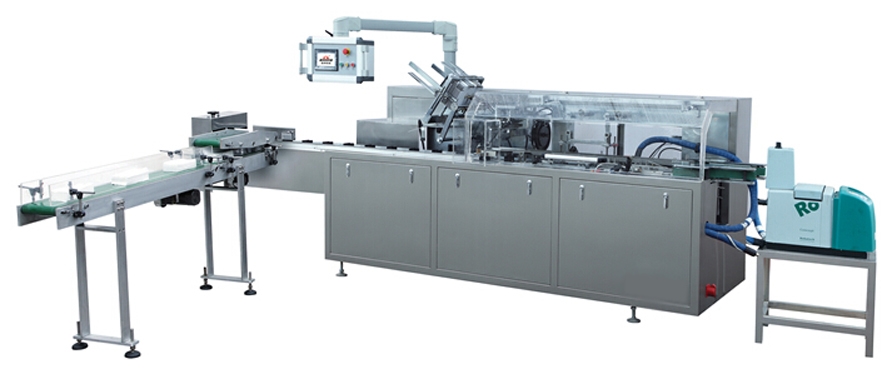

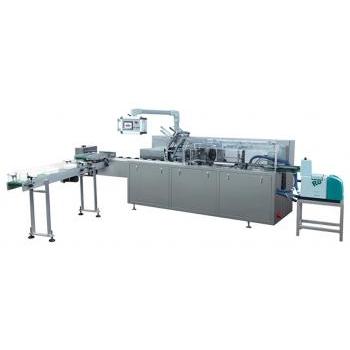

1.Total Power of Machine: 4.5kw;
2.Maximum packaging size(L×W×H): 140-200mm*60-120mm*45-90mm;
3.Packing speed: 40-100 box/minute;
4.Power of Hot Melt Adhesive Machine: 3kw.
Feature:
1.Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, waste elimination etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2.Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3.The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty,so as to save packing materials to the utmost extent.
4.With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
5.Change of specifications does not need change of molds, but can be realized through adjustment. The packing speed and counting product can be showed on PLC automatically
6.Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
7.According to customer requirements, the upturning type safety protective cover is adopted, which is featured bysimple operation and beautiful appearance.
Parameter:
1.Total Power of Machine: 4.5kw;
2.Maximum packaging size(L×W×H): 140-200mm*60-120mm*45-90mm;
3.Packing speed: 40-100 box/minute;
4.Power of Hot Melt Adhesive Machine: 3kw;
5.Main power: 0.75kw;
6.Power Supply: 380V, 50HZ, 3 phase,4 wire;
7.Machine Noice: ≤80dB;
8.Air Supply: 0.5-0.8 Mpa.
9,Air Consumption: 120-160L/min
10,Overall Dimension: Main Machine: 3000×1100×1650mm
11,Conveying System: 2000×400×1300mm
Machine Weight: 1200Kg
