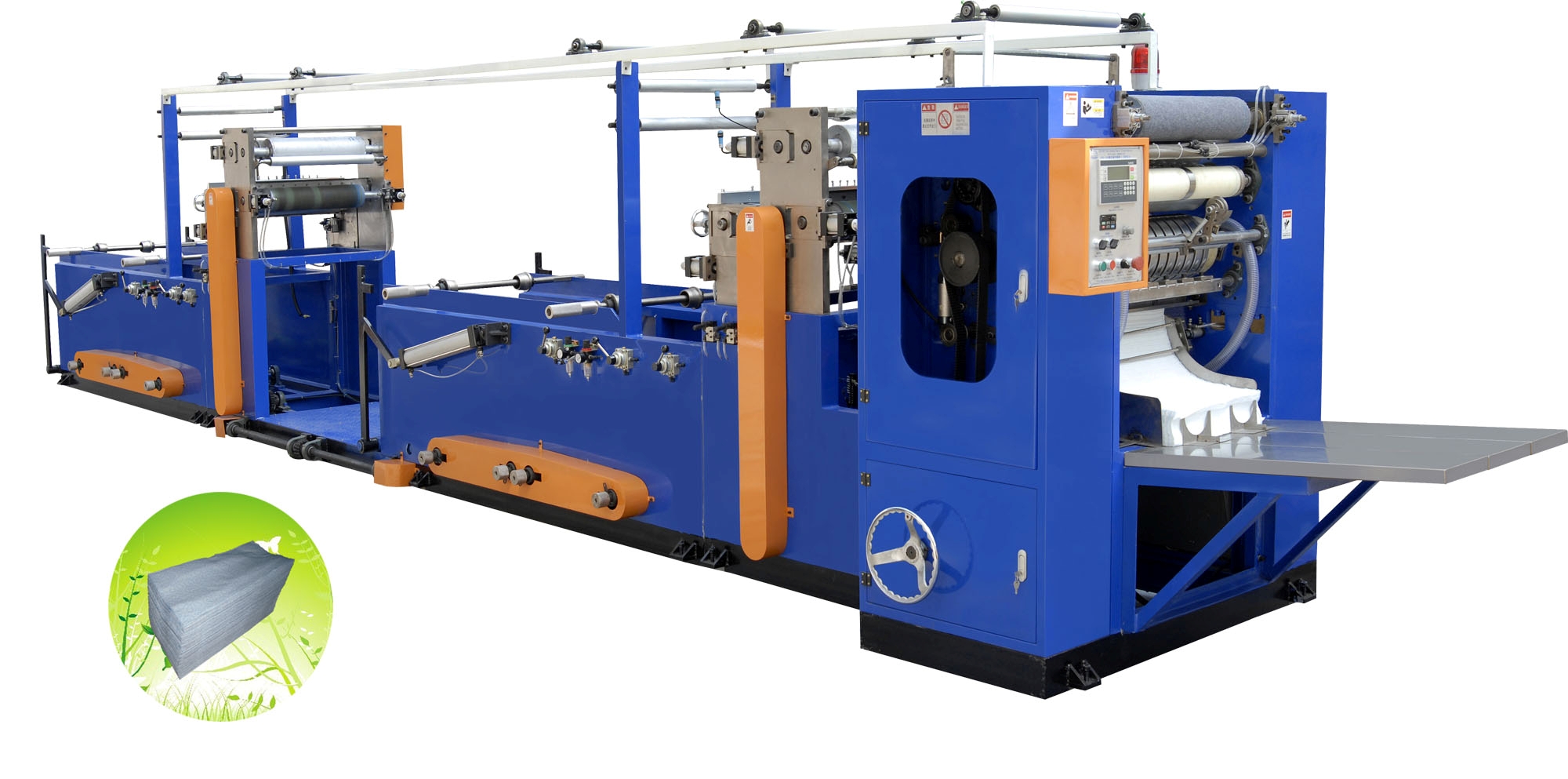

Automatic V-fold Towels Folding machine makes the towels or wet strength tissue as materials to emboss, cut and then fold into V - shaped towels , which are widely used in the hotels, offices and kitchens. The towels can be easily drawn out one after another from the dispensers or packaging boxes. Machine is high speed and products are in good quality.
Main Characteristics：
1.Steel to steel embossing,pneumatically press. The design is available to customer's requirement.
2.Transmitted by Synchronous belt. The transmitting speed is correct, and the noise is low.
3.Pneumatically cut and separate. It is easy to load paper.
4.PLC control and electronically count.Equip with front and back inching switches.5.Add glue lamination device, can produce paper towel or kitchen towel with glue lamination. Make 2 layers of paper stick together to enhance water absorbability.
Main technical parameter：
1.Production speed: 1000-1200 sheets / minute(depends on the output line);
2.The product size 240mm (width) x220mm (cutting end);
3.Product folding size: 240mm (width)x 110mm (cutting end);
4.The largest diameter of max width: 480mm (2 line output)/960mm (4 line output)/1440mm (6 line output);
5.The largest diameter of paper: 1200mm;
6.Power: 9KW;
7.Size of the equipment (mm):9400X1550X1950mm;
8.The weight of equipment:2.5T.
